SKU: 10.01AG

100 Series Concrete Grey Block

$2.88
Type

Description

The 100 Series Concrete Grey Block is a versatile masonry unit suited to internal and external walls in residential and commercial construction. Available in Hollow, Solid and Fire Rated Solid configurations, the 100 Series covers a wide range of structural and non-structural applications across Melbourne and Victoria.

Key Features
  • Hollow Series: 60-minute fire rating (f'uc ≥ 10MPa, FRL = 60, Srf ≤ 22.5)
  • Solid Series: Standard grey masonry block for structural applications
  • Fire Rated Solid Series: 120-minute fire rating (f'uc ≥ 10MPa, FRL = 90, Srf ≤ 22.6)
  • Available in Standard, Three Quarter, Half, Quarter and Half Height sizes
  • Manufactured to Australian Standards
Specifications
Product Code Description Size (mm) Weight (kg) Per Pallet Fire Rating MPA
10.01AG Standard Hollow 390 × 190 × 90 11.1 149 FRL = 60 f'uc ≥ 10MPa
10.02AG Three Quarters Hollow 290 × 190 × 90 8.7 192 FRL = 60 f'uc ≥ 10MPa
10.03AG Half Hollow 190 × 190 × 90 5.5 252 FRL = 60 f'uc ≥ 10MPa
10.71AG Half Height Hollow 390 × 90 × 90 5.6 300 FRL = 60 f'uc ≥ 10MPa

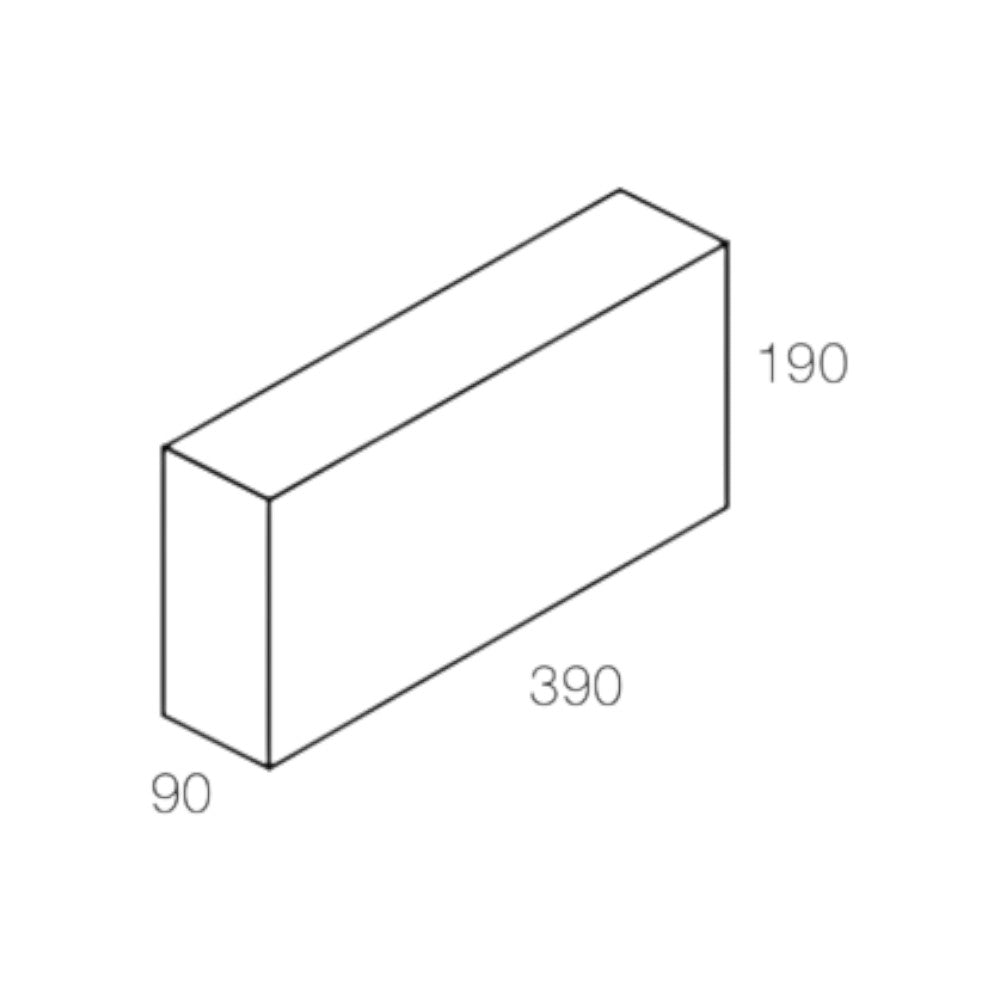

10.31AG Standard Solid 390 × 190 × 90 14.2 139 — f'uc ≥ 10MPa

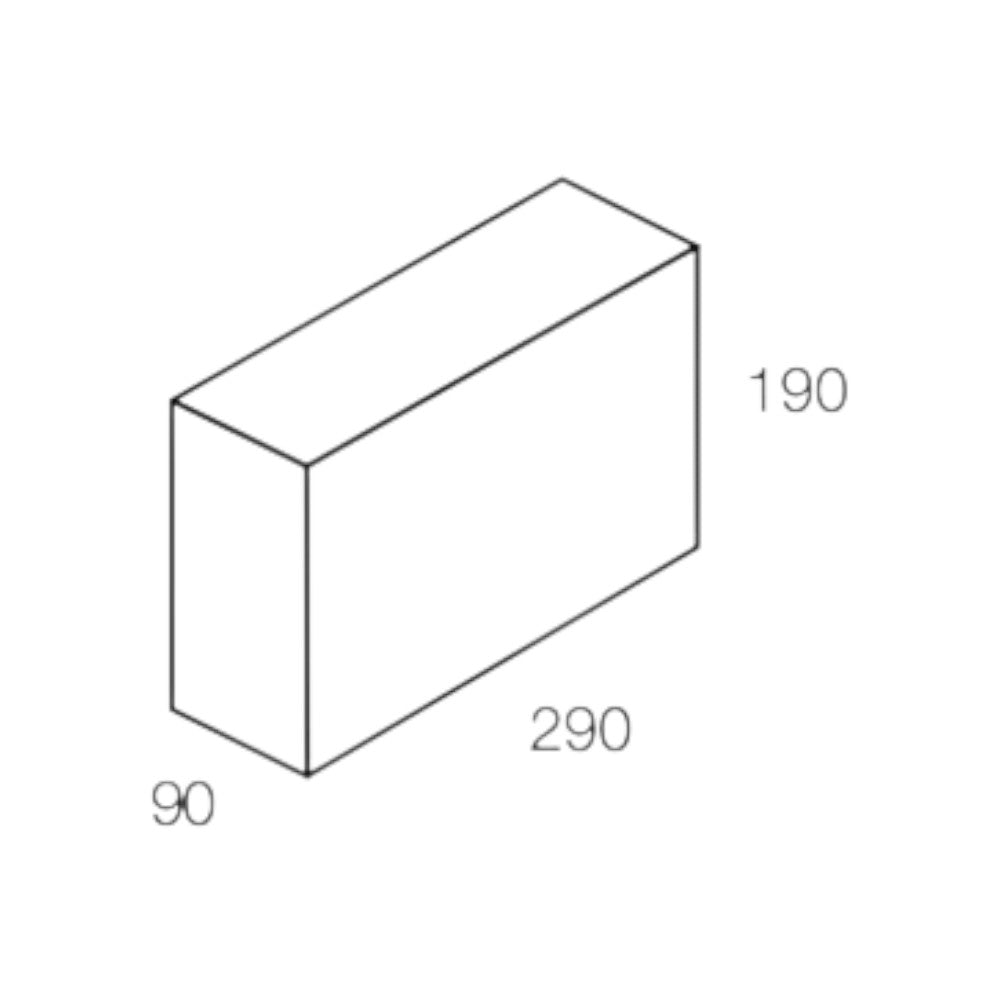

10.32AG Solid Three Quarters 290 × 190 × 90 10.2 192 — f'uc ≥ 10MPa
10.33AG Solid Half 190 × 190 × 90 6.8 252 — f'uc ≥ 10MPa
10.34AG Solid Quarter 90 × 190 × 90 3.3 504 — f'uc ≥ 10MPa
10.31FR Fire Rated Solid 390 × 190 × 90 11.6 139 FRL = 90 f'uc ≥ 10MPa
10.32FR Fire Rated Solid Three Quarter 290 × 190 × 90 10.2 192 FRL = 90 f'uc ≥ 10MPa
10.33FR Fire Rated Solid Half 190 × 190 × 90 6.8 252 FRL = 90 f'uc ≥ 10MPa
10.34FR Fire Rated Solid Quarter 90 × 190 × 90 3.3 504 FRL = 90 f'uc ≥ 10MPa
Where to Use

Internal and external residential walls, partition walls, fire-rated walls, and light commercial construction across Melbourne and Victoria.
