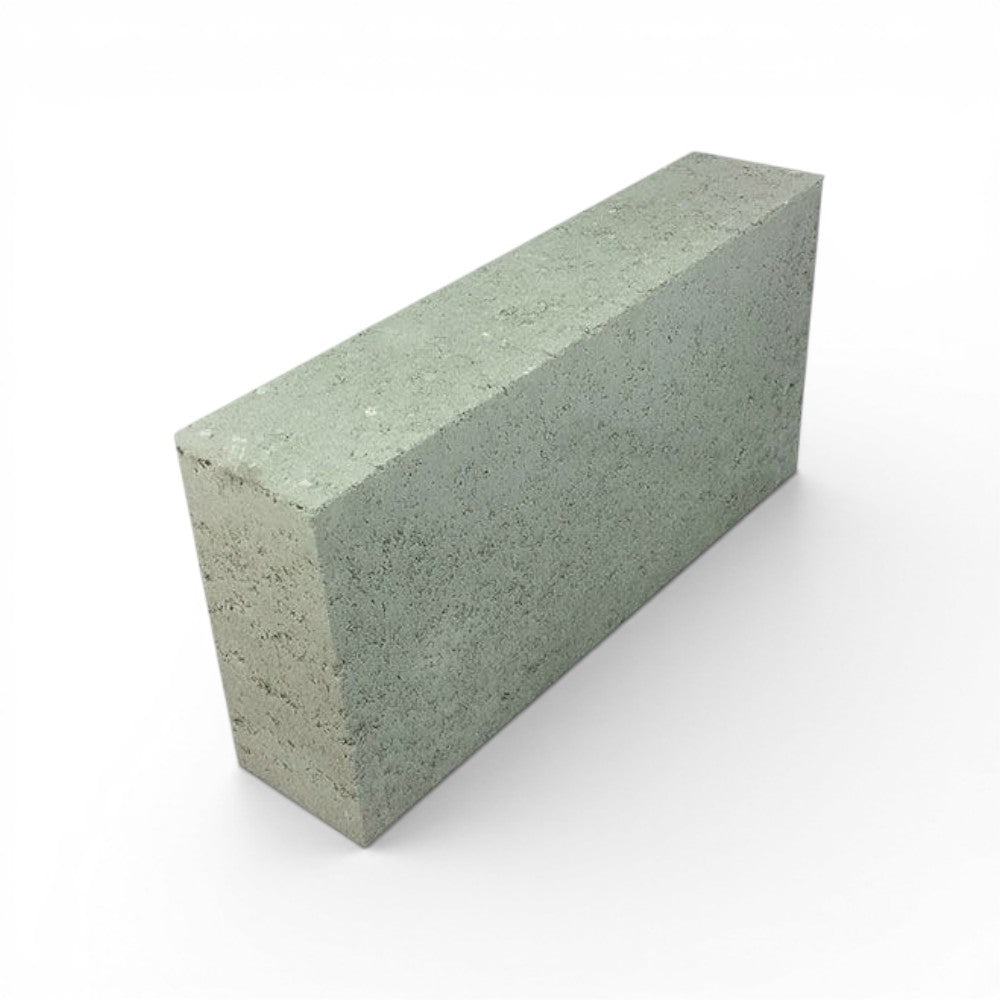

National Masonry 100 Series Concrete Grey Block

$0.00
Type

Description

The National Masonry 100 Series Concrete Grey Block is a versatile masonry block used for internal and external walls in residential and commercial construction. Available in Hollow (60-minute fire rated) and Fire Rated Solid configurations, the 100 Series suits a wide range of structural and non-structural applications across Melbourne and Victoria.

Key Features
  • Hollow Series: 60-minute fire rating (f'uc ≥ 10MPa)
  • Fire Rated Solid Series: 60-minute fire rating (f'uc ≥ 8MPa)
  • Manufactured using recycled fly ash for a lightweight, high strength product
  • Available in Standard, Three Quarter, Half, Quarter and Half Height sizes
  • Manufactured to Australian Standards by National Masonry VIC
Specifications
Product Code Description Size (mm) Weight (kg) Per Pallet Fire Rating MPA

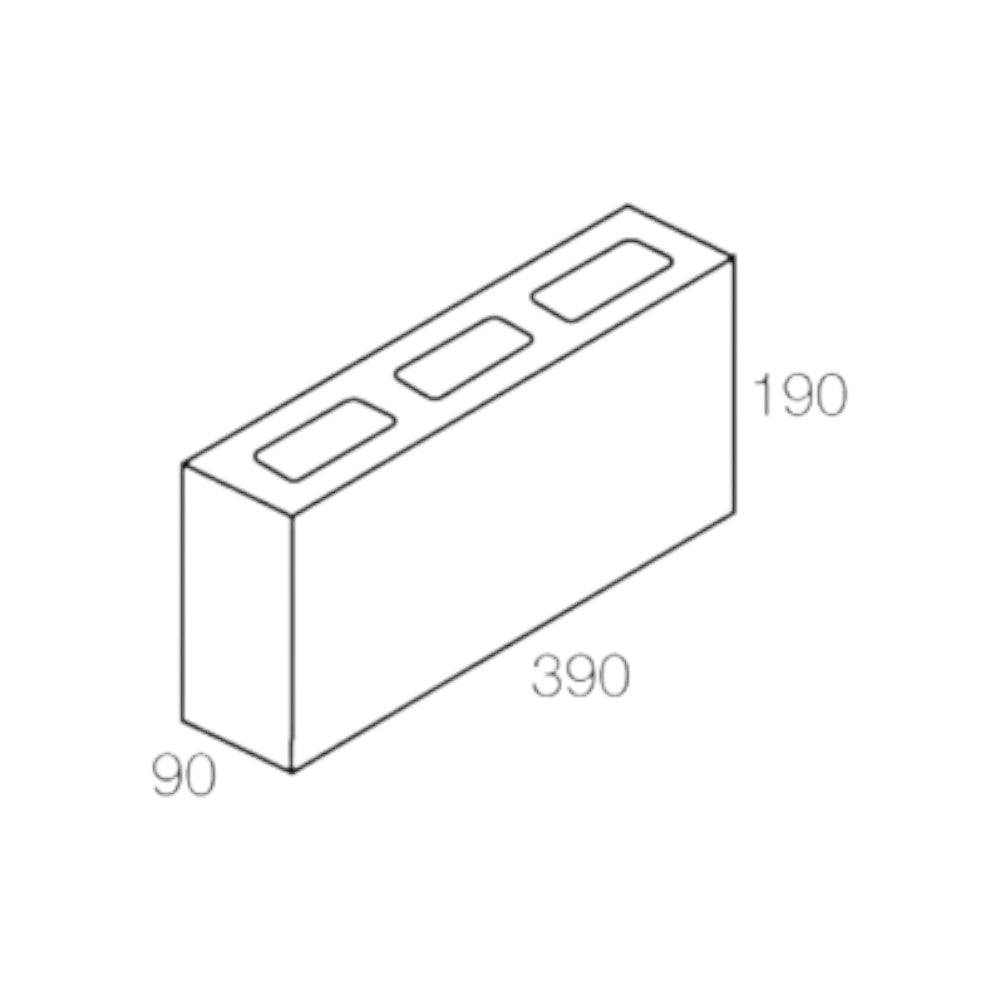

10.01AG Standard 390 × 190 × 90 11.1 149 FRL = 60 f'uc ≥ 10MPa

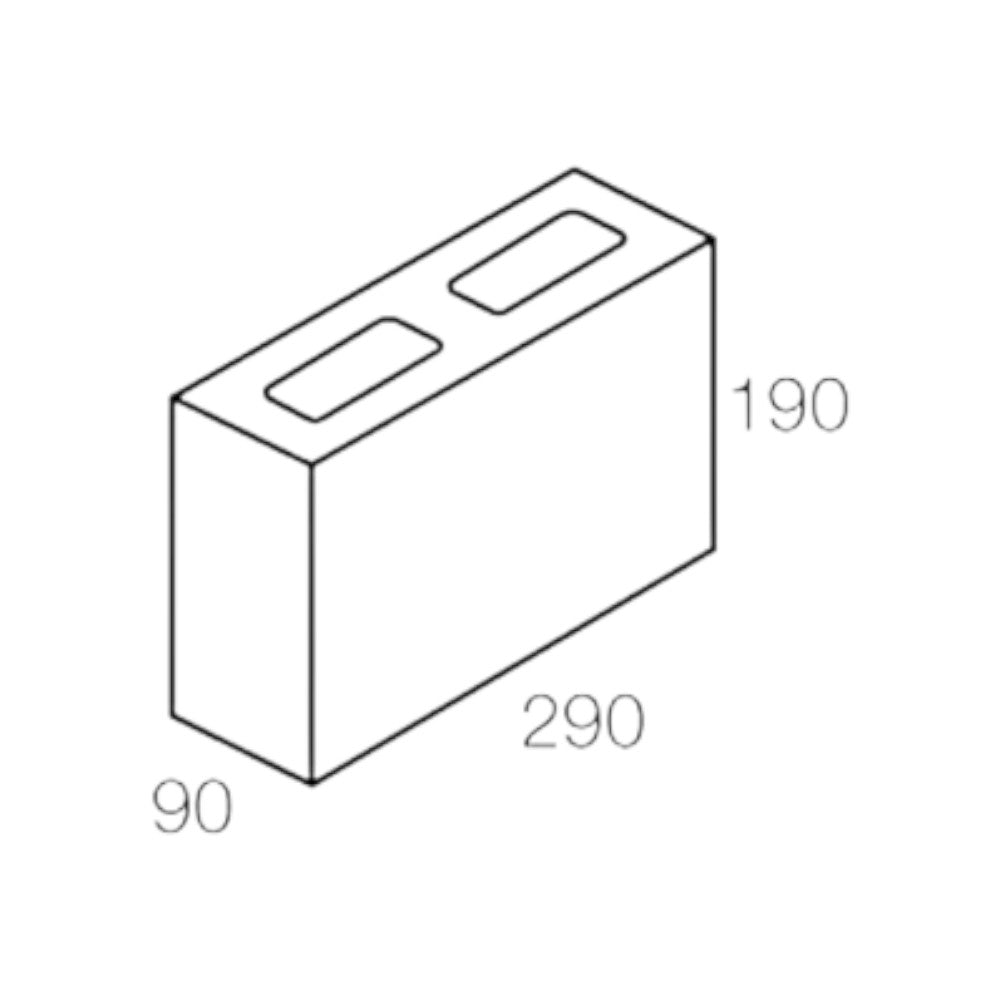

10.02AG Three Quarters 290 × 190 × 90 8.7 192 FRL = 60 f'uc ≥ 10MPa

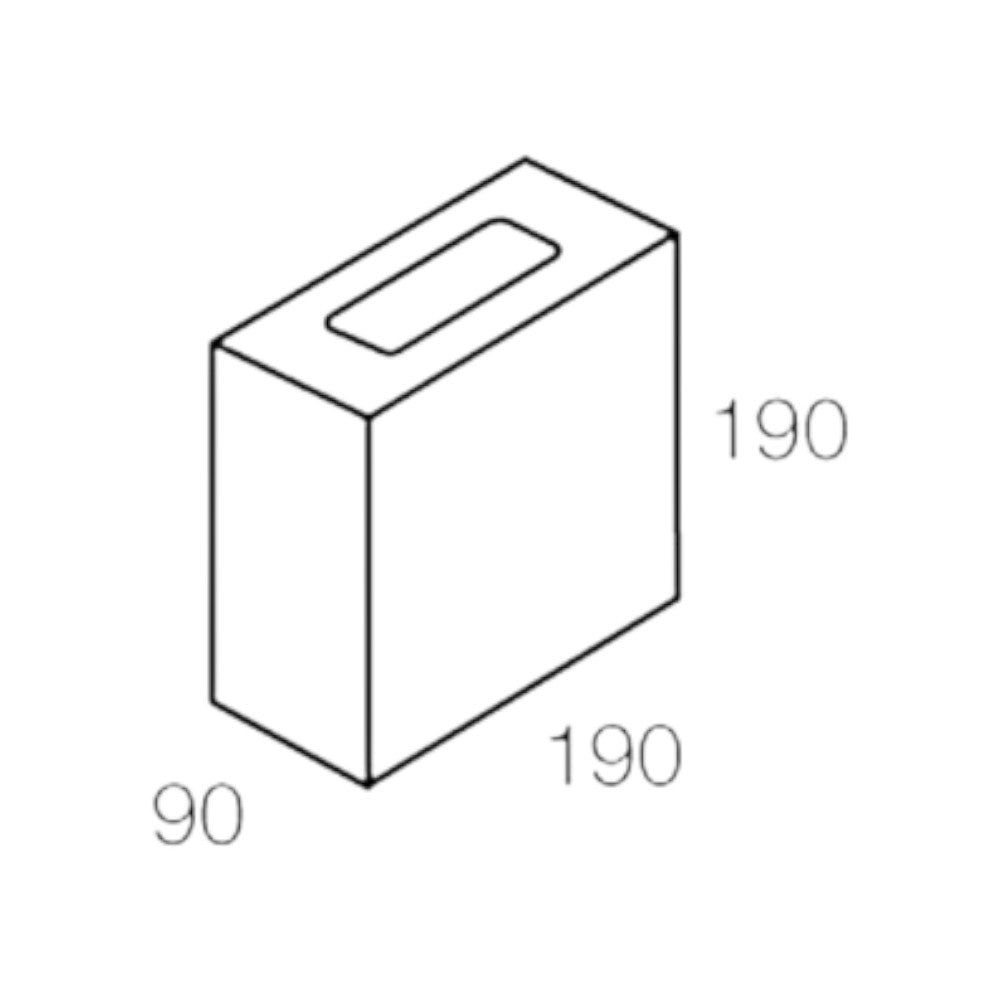

10.03AG Half 190 × 190 × 90 5.5 252 FRL = 60 f'uc ≥ 10MPa

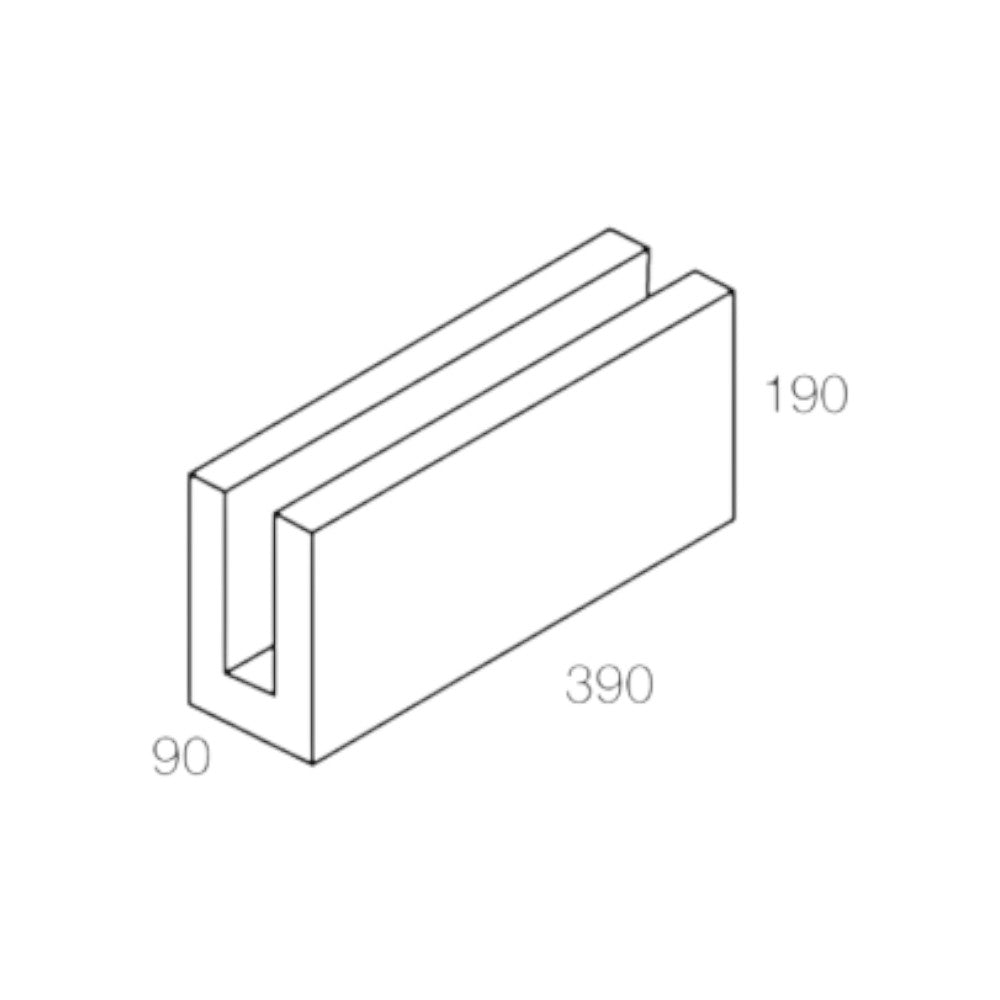

10.12AG Bond Beam 390 × 190 × 90 10.1 108 FRL = 60 f'uc ≥ 10MPa

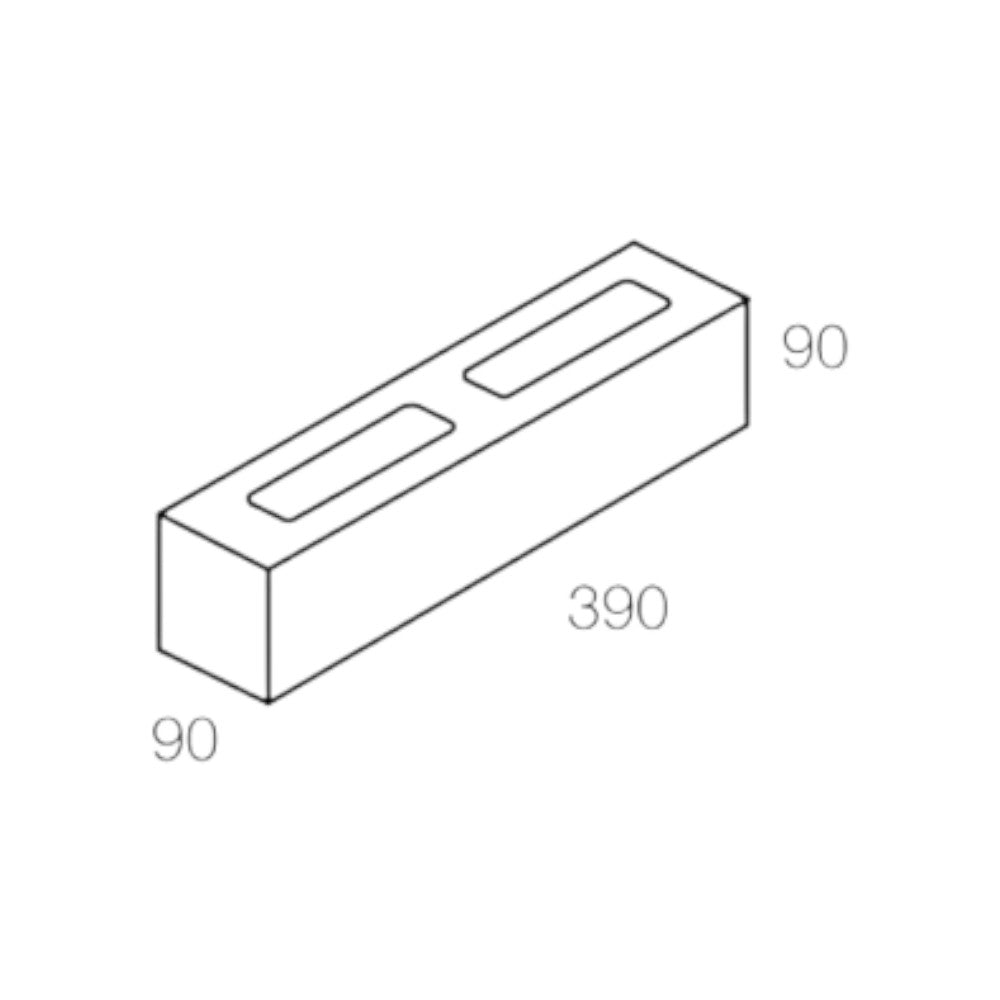

10.71AG Standard Half Height 390 × 90 × 90 5.6 300 FRL = 60 f'uc ≥ 10MPa

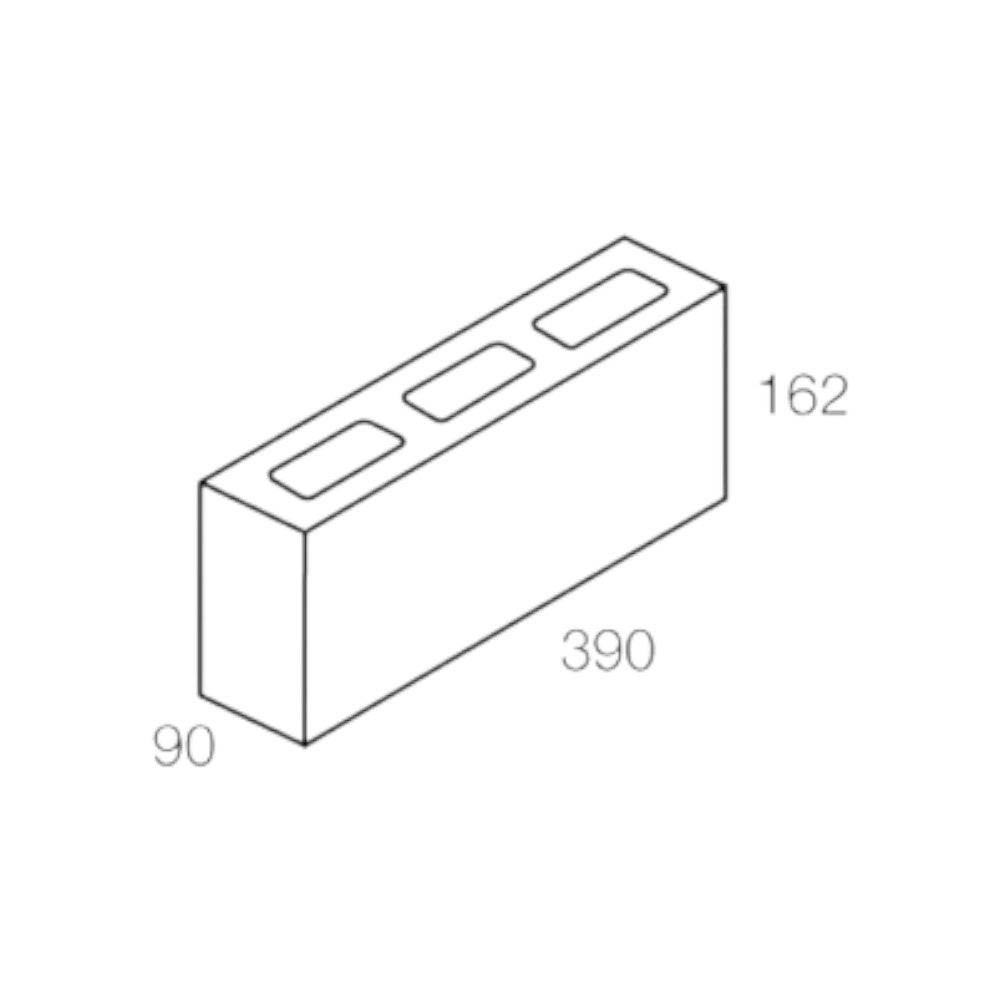

10.201AG Back-up Hollow 390 × 162 × 90 10.1 172 FRL = 60 f'uc ≥ 10MPa

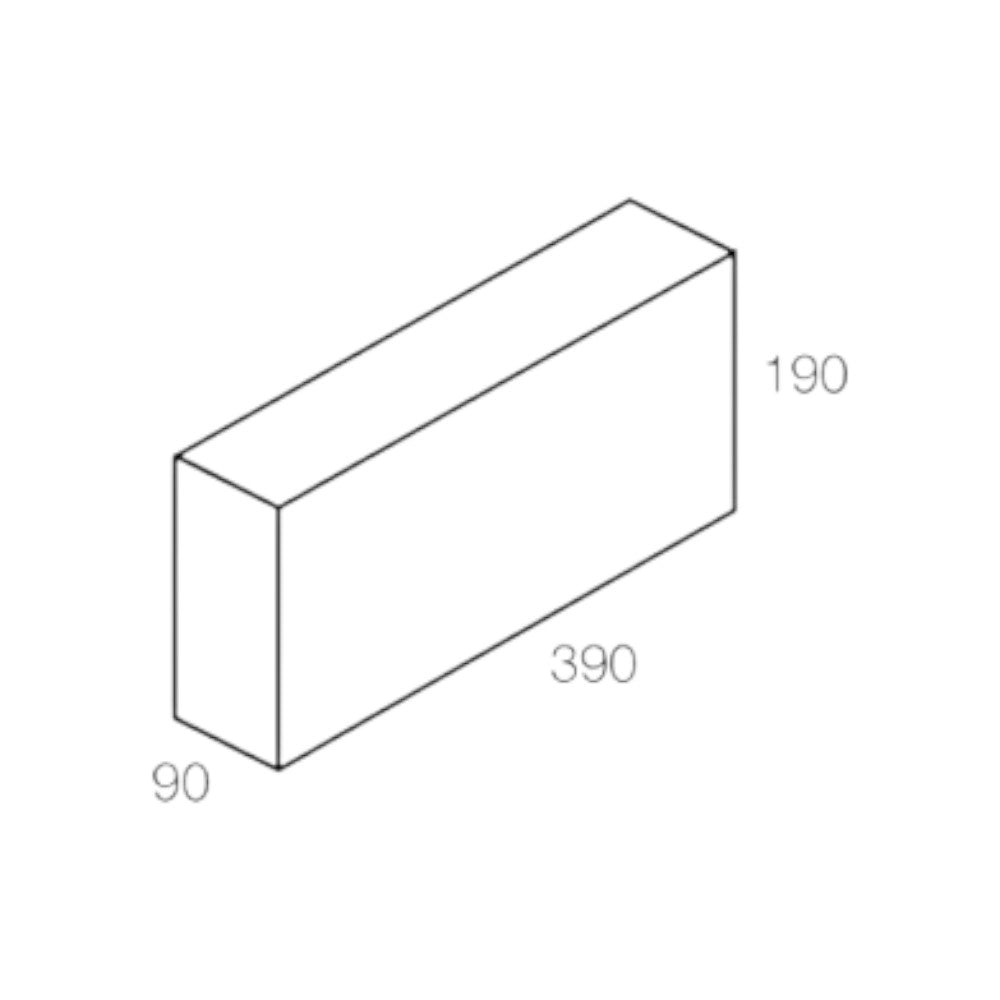

10.31FR Fire Rated Solid 390 × 190 × 90 11.6 139 FRL = 60 f'uc ≥ 8MPa

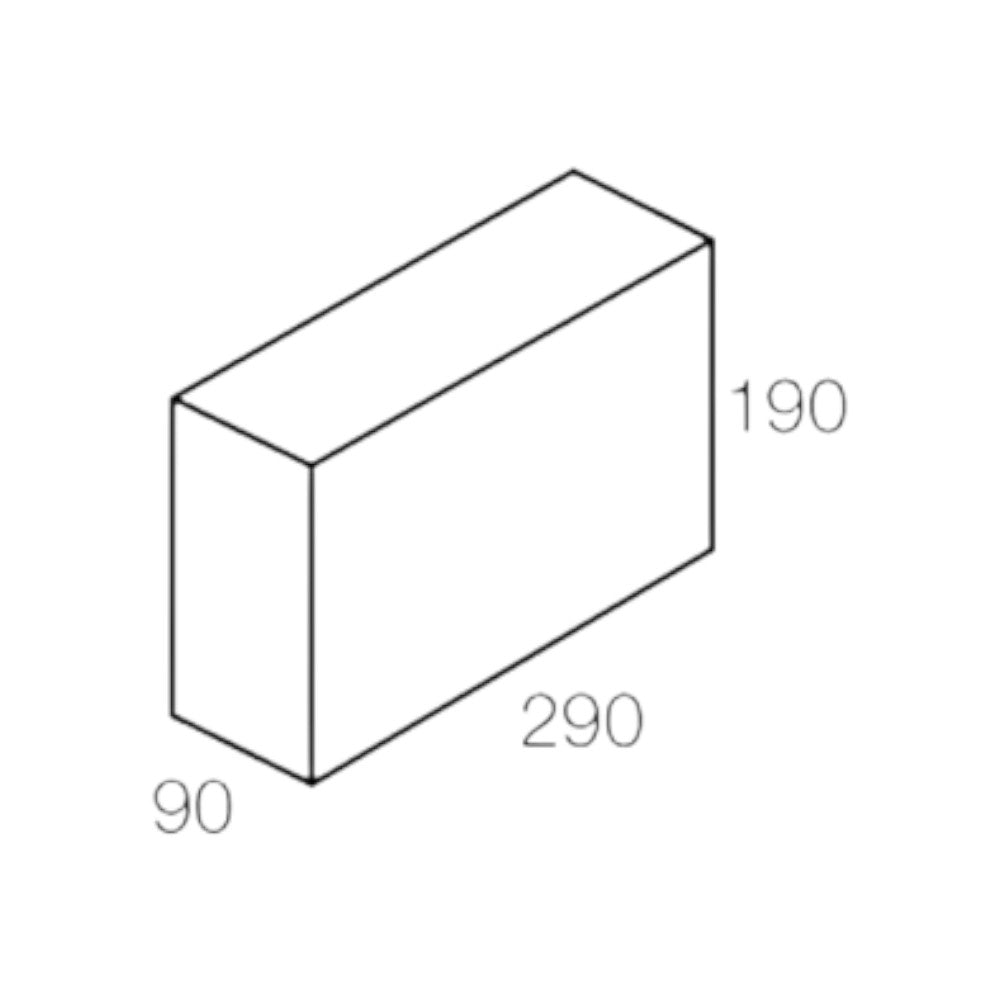

10.32FR Fire Rated Solid Three Quarter 290 × 190 × 90 10.2 192 FRL = 60 f'uc ≥ 8MPa

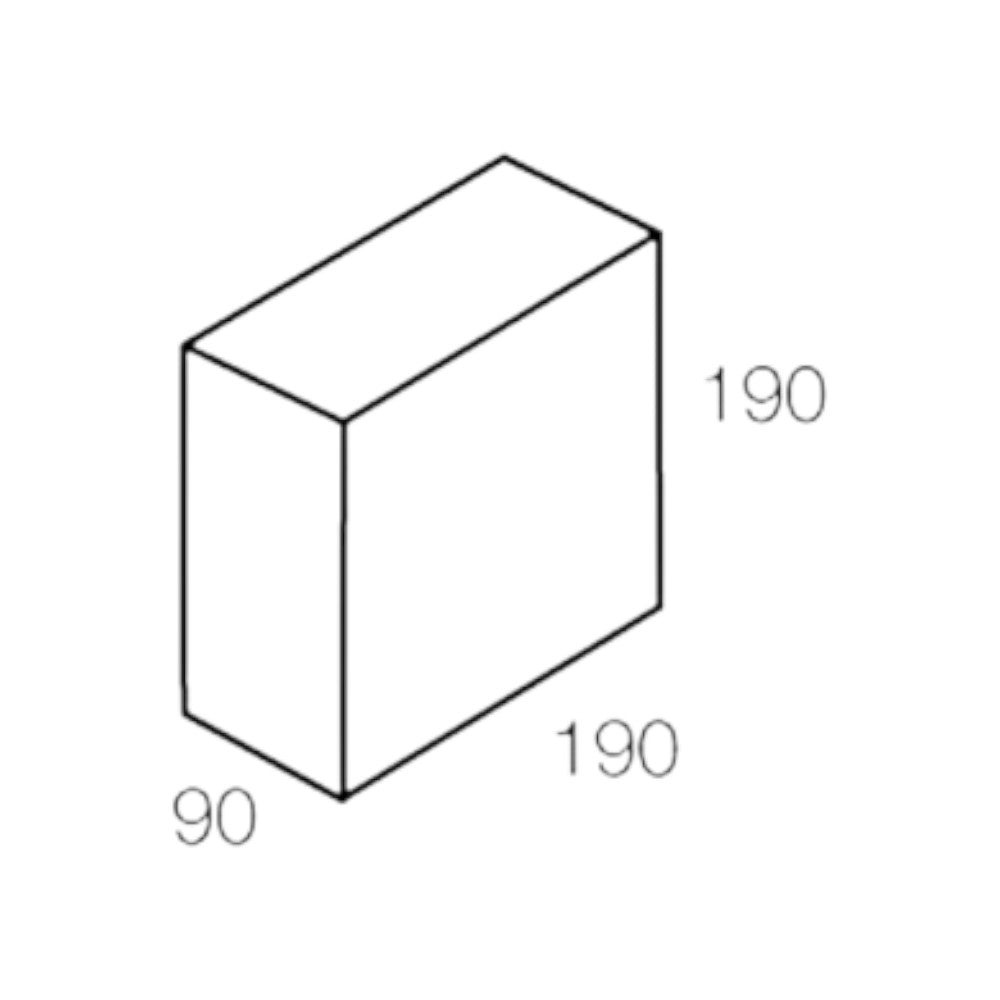

10.33FR Fire Rated Solid Half Length 190 × 190 × 90 6.8 252 FRL = 60 f'uc ≥ 8MPa

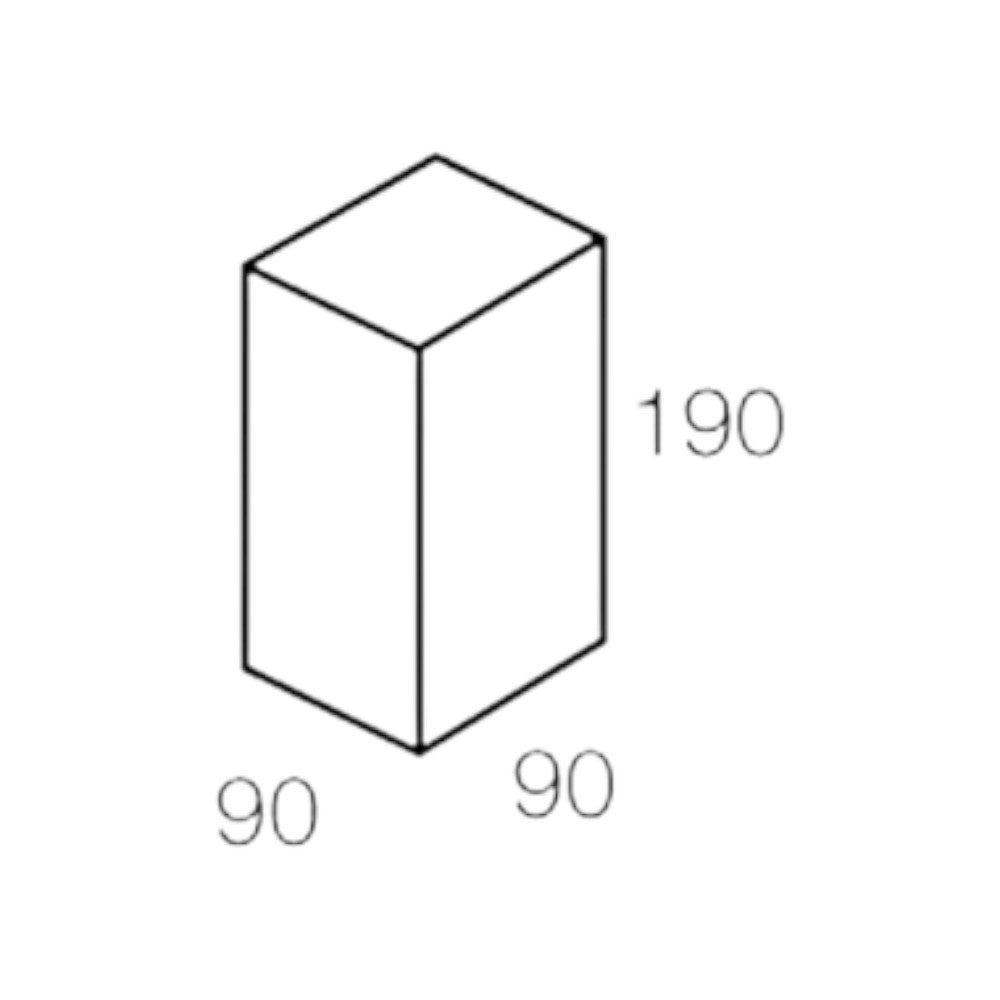

10.34FR Fire Rated Solid Quarter Length 90 × 190 × 90 3.3 504 FRL = 60 f'uc ≥ 8MPa
Where to Use

Internal and external residential walls, partition walls, fire-rated walls, and light commercial construction across Melbourne and Victoria.
