Adbri Masonry

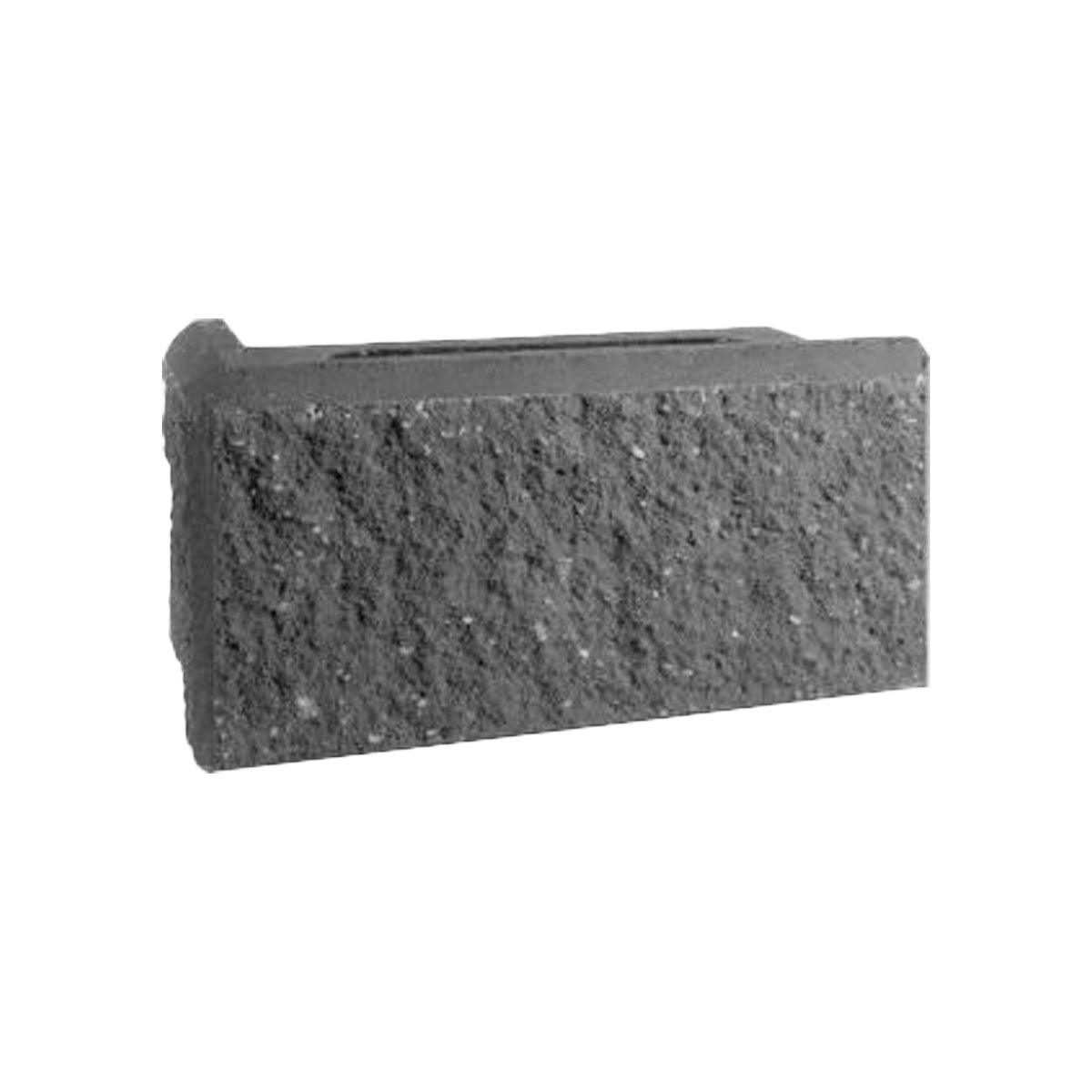

AB™ Classic Corner Unit

$21.48
Color: CHARCOAL

Description
Key Features:

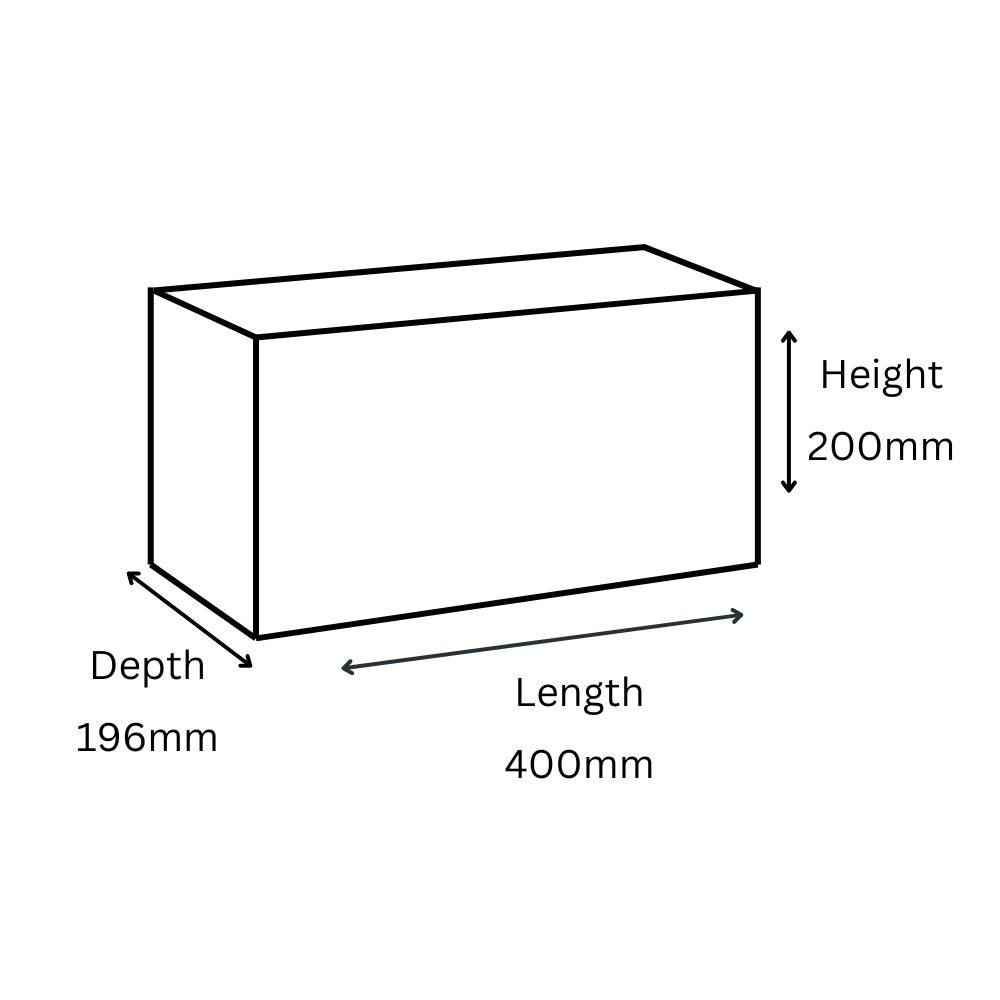

  • Dimensions: L: 400mm x D: 196mm x H: 200mm, with an approximate weight of 25.48kg. Available in both left and right-hand units.
  • Contemporary Design: Traditional set-back blocks with a large face, offering a modern and stylish appearance.
  • Easy Installation: Simple and straightforward to install, making it ideal for DIY projects like retaining walls and garden edging.
  • Aesthetic Features: Horizontal bevels frame the block face, enhanced by a premium split face surface texture for a visually appealing finish.
  • Versatility: Includes specialty corner and block capping units, allowing for diverse design options.
  • Height Capability: Capable of building unreinforced walls up to 1000mm, or reinforced walls up to 2600mm, with each block having a 6º setback.

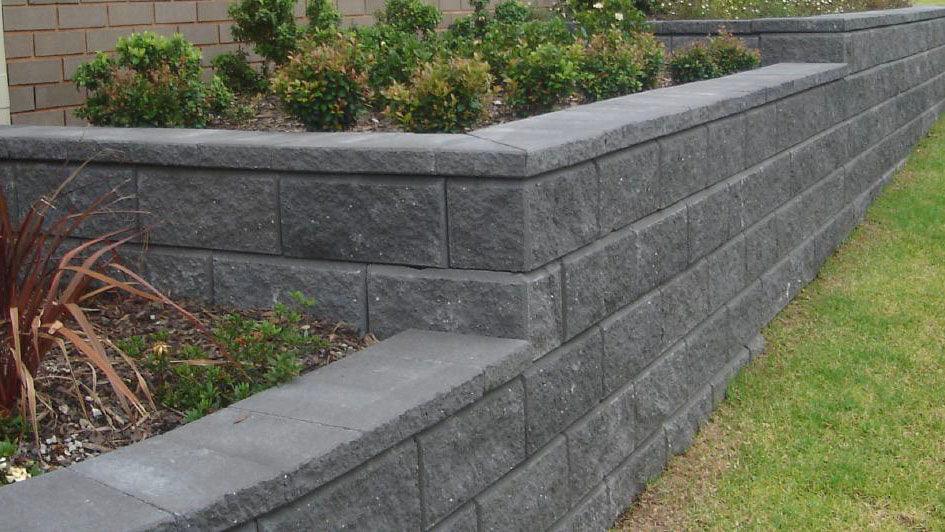

  • Applications: Suitable for straight or curved garden walls, residential walls, retaining walls, planter boxes, and vegetable patches.
  • Structural Guidelines: Can reach a maximum unreinforced height of 1000mm + Cap (5 courses), or 2600mm + Cap (7 courses) with reinforcement. For walls over 800mm in height, consulting local council guidelines is recommended.
  • Additional Uses: Ideal for creating steps, curves, engineered higher walls, and setback walls. Perfectly complements AB™ Classic units for cohesive design.

Recommended For

TECHNICAL INFORMATION

Range Size (mm) L x D x H No. per m2 No. per tonne No. per pallet Colours
Allan Block® Cornerstone Aussie Vertical Short 300 x 196 x 200 - 51 60 (30 L/30 R) Bondi Blend
Charcoal
Oatmeal
Allan Block® Cornerstone Aussie Vertical 400 x 196 x 200 - 45 40 (20 L/20 R)
Allan Block® Cornerstone Classic (Setback 6°) 400 x 196 x 200 - 45 40 (20 L/20 R)
Allan Block® Short Cap Aussie 216 x 245 x 80 4.6 L/m 108 120
Allan Block® Long Cap Classic 216 x 310 x 80 4.6 L/m 86 120
