WoodVance Cladding Series B – 5-Hole Profile 5400 x 219 x 26mm

$77.17

Colour: Carbon Black

Description

WoodVance Cladding Series B features a refined 5-hole profile design, offering enhanced structural stability and a bold architectural appearance. Building on the 4-hole design, it offers improved moisture resistance and delivers a perfect balance of durability, low maintenance and weather resistance – ideal for feature walls and exterior cladding that call for a clean, sophisticated finish.

Key Features

5-hole design for enhanced structural stability and improved moisture resistance
Bold, architectural ribbed appearance
Advanced co-extrusion technology
Excellent UV, water, moisture and insect resistance
UV protection keeps colours vibrant
Made from 100% recycled materials
Lightweight, durable and easy to install
Low-maintenance finish
Up to 10 years residential warranty; 8 years commercial warranty

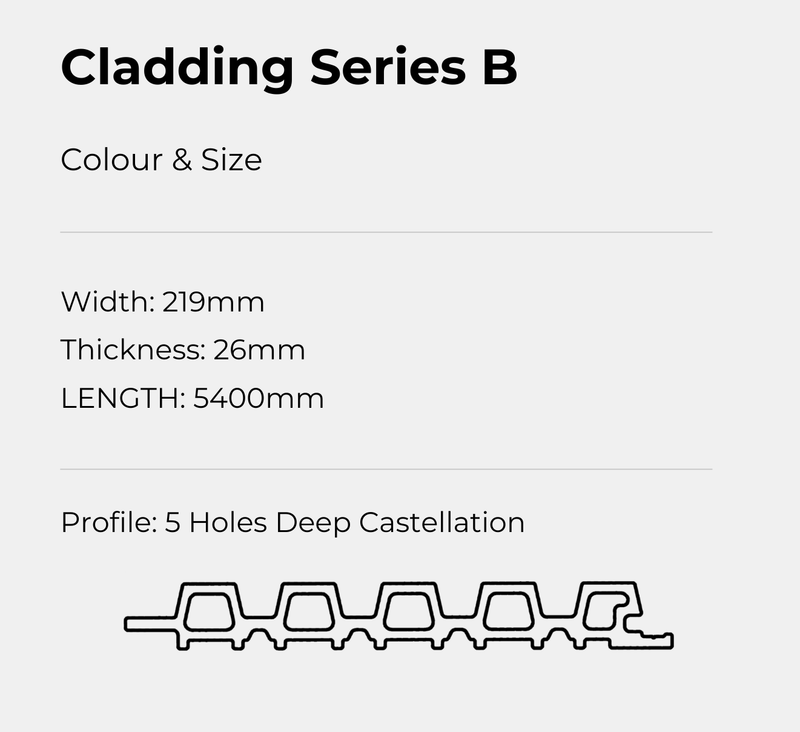

Specifications

Product	WoodVance WPC Cladding – Series B
Dimensions	5400mm (L) x 219mm (W) x 26mm (T)

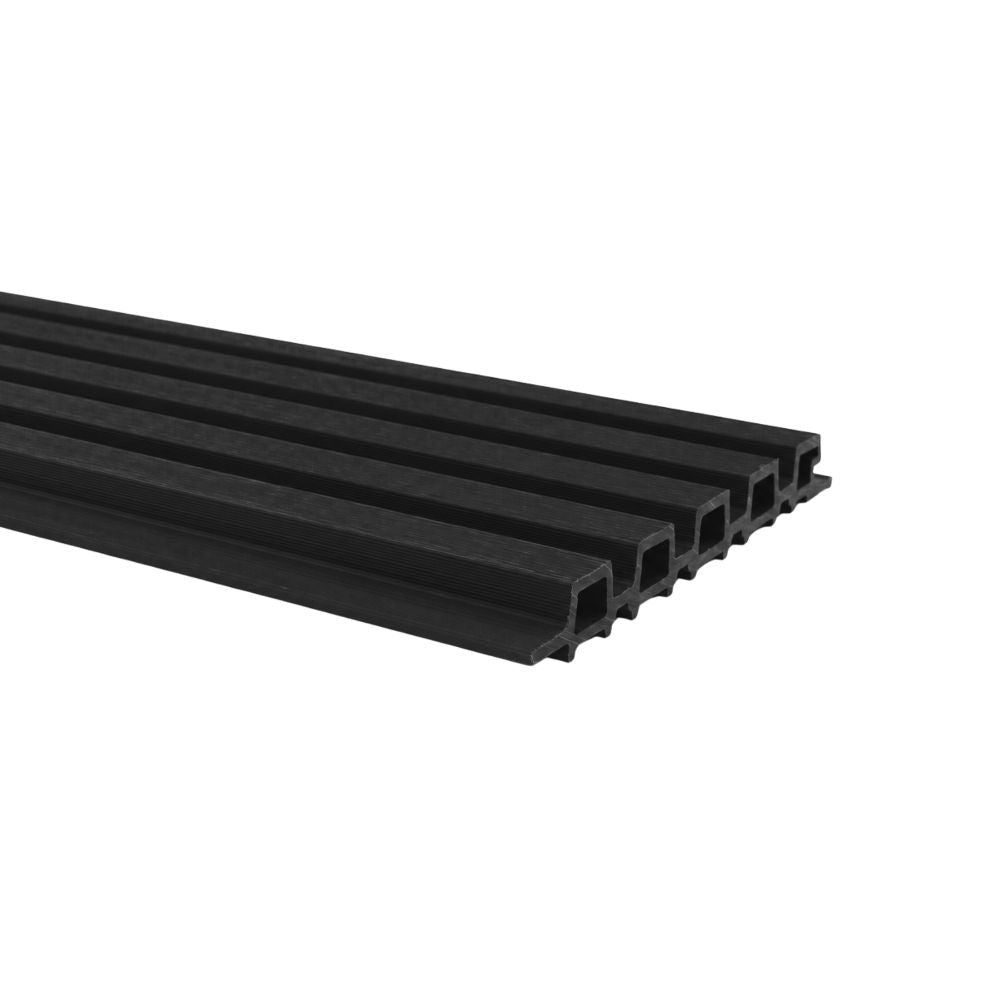

Profile	5 holes deep castellation
Weight	16.1kg per board
Material	Co-extruded wood-plastic composite (WPC), 100% recycled materials
Warranty	10 years residential; 8 years commercial
Sold As	Per board (5.4m length) – equivalent to $14.29 per lineal metre

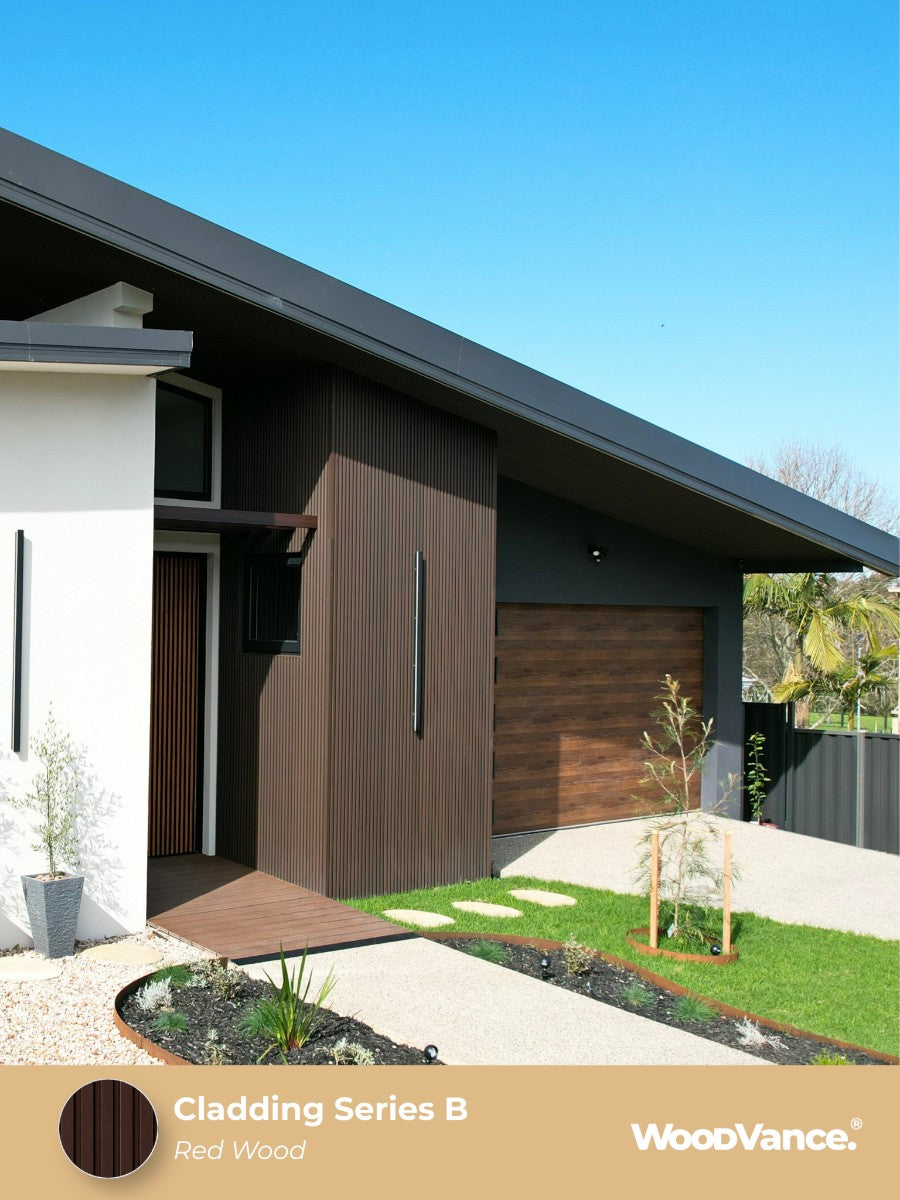

Where to Use

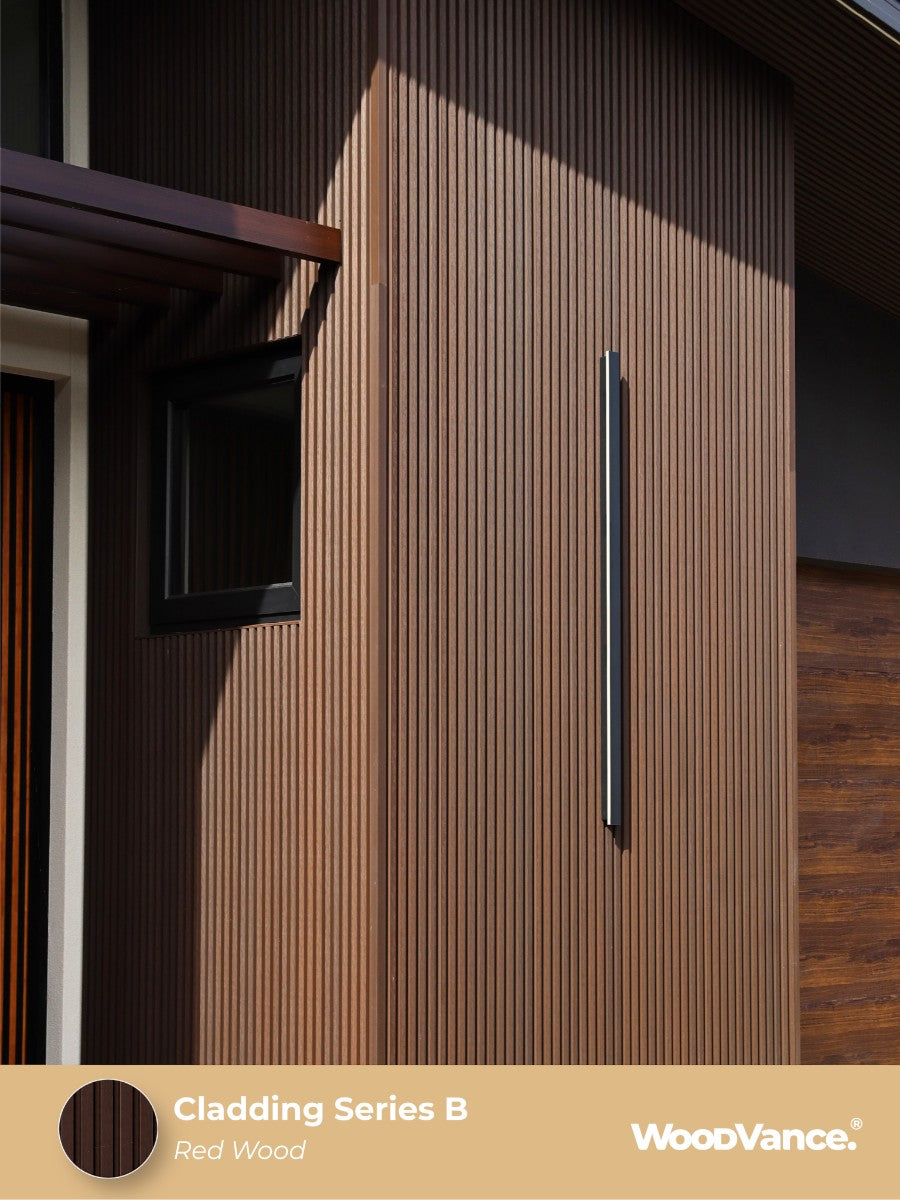

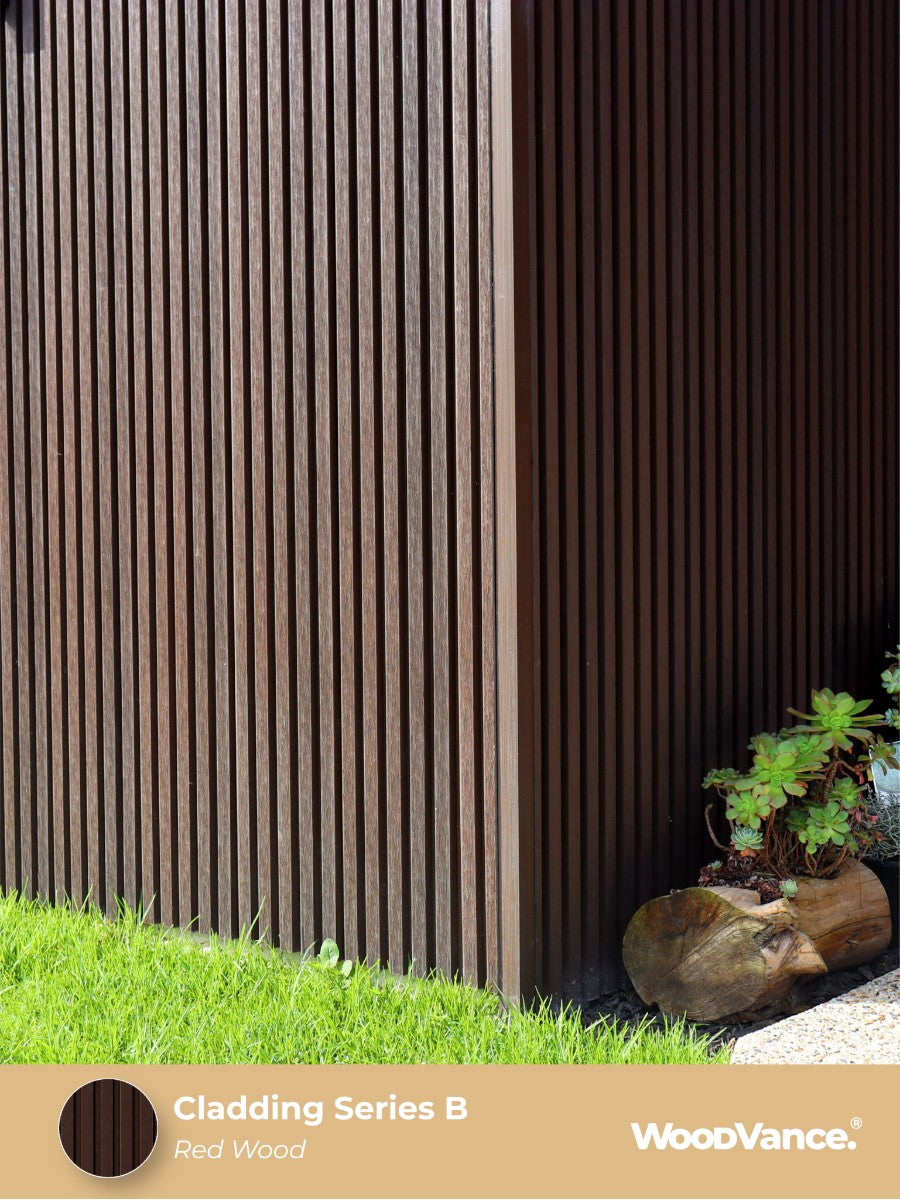

Exterior house facades and feature walls

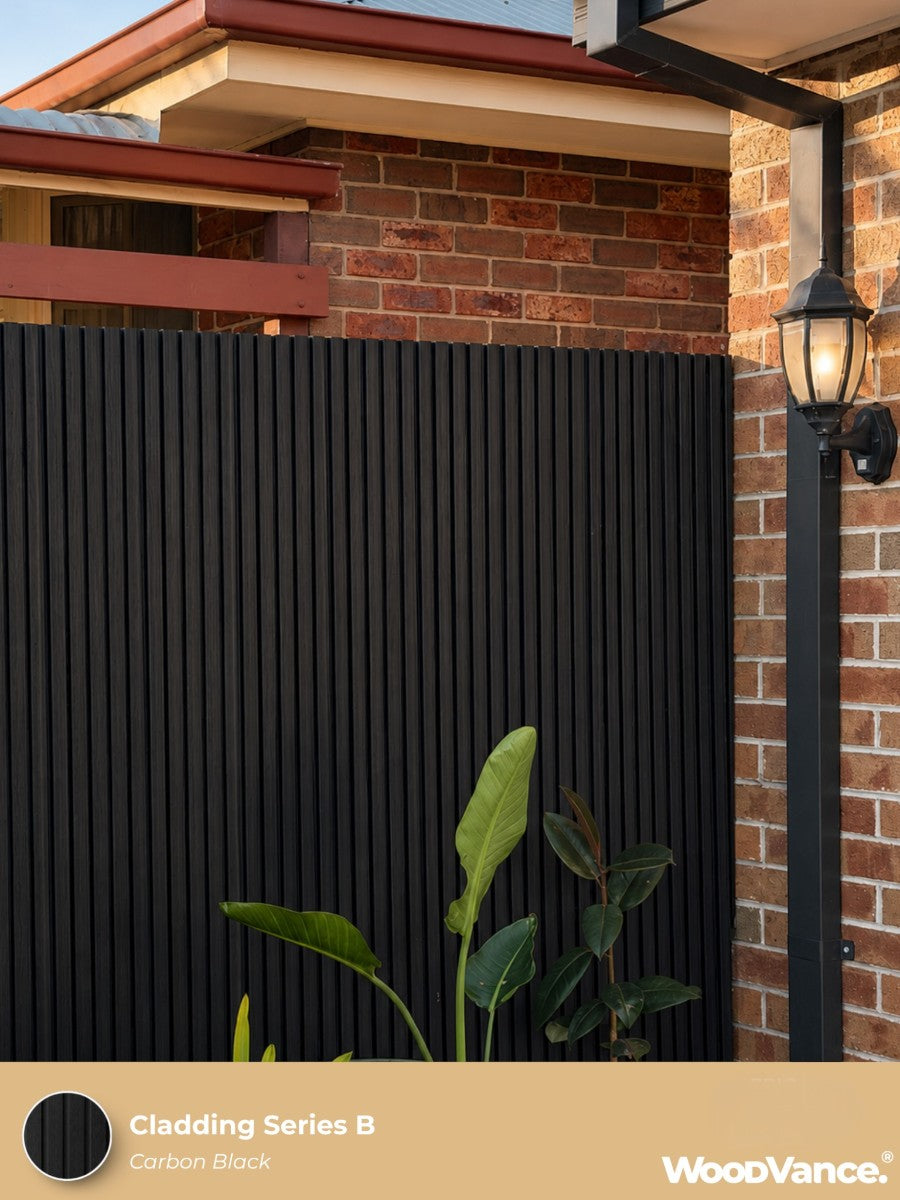

Garden fences, screens and gates
Residential and commercial projects

Available Colours

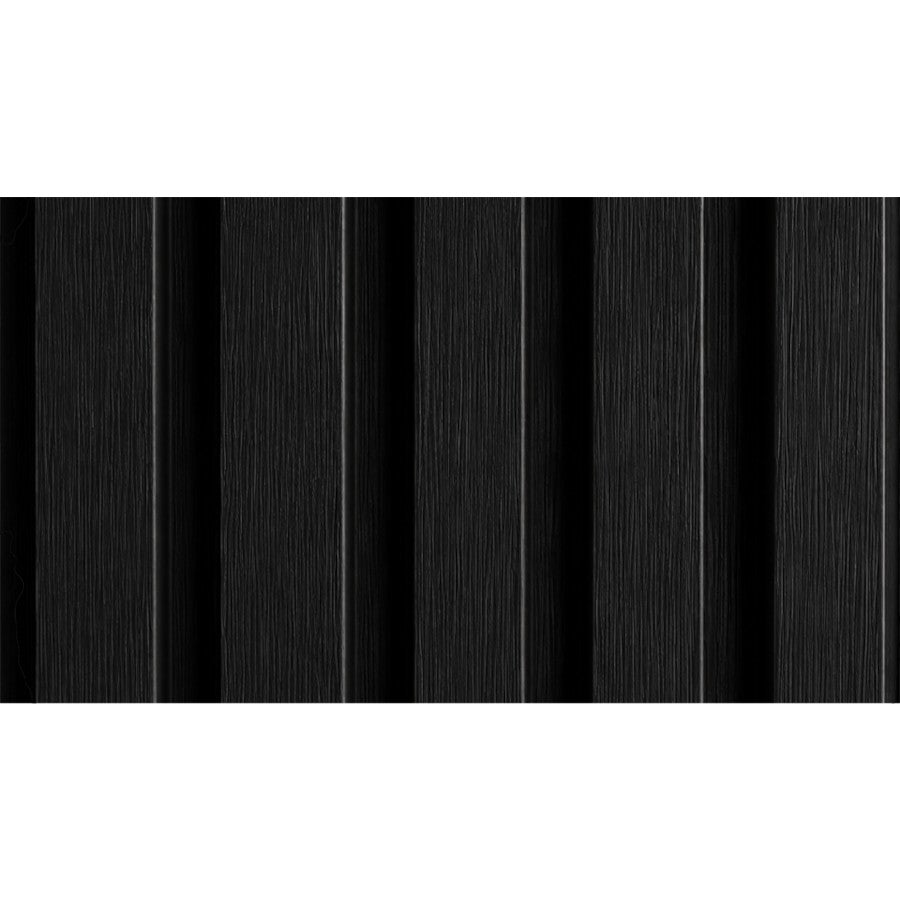

Carbon Black

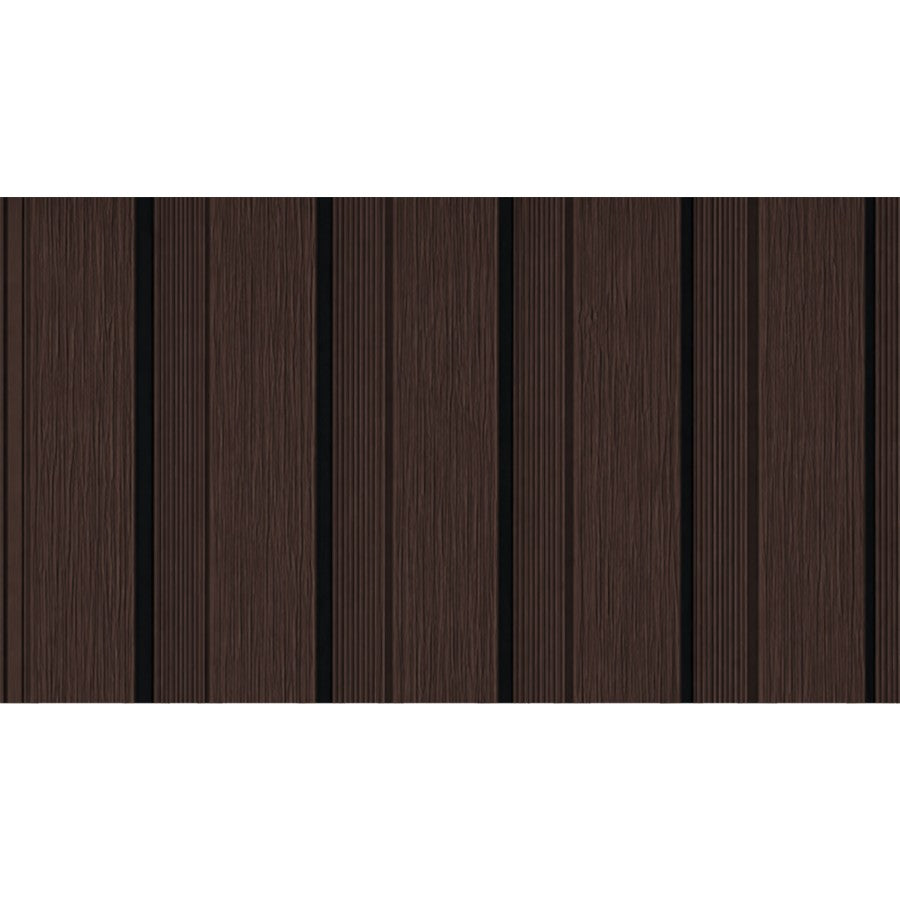

Red Wood

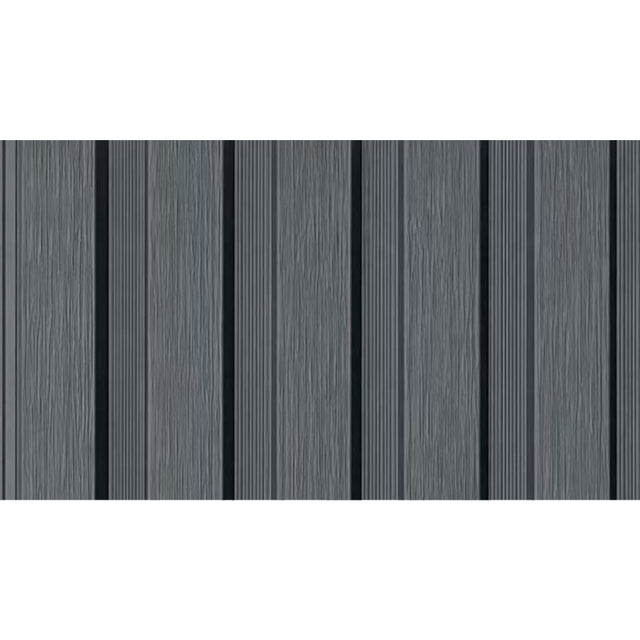

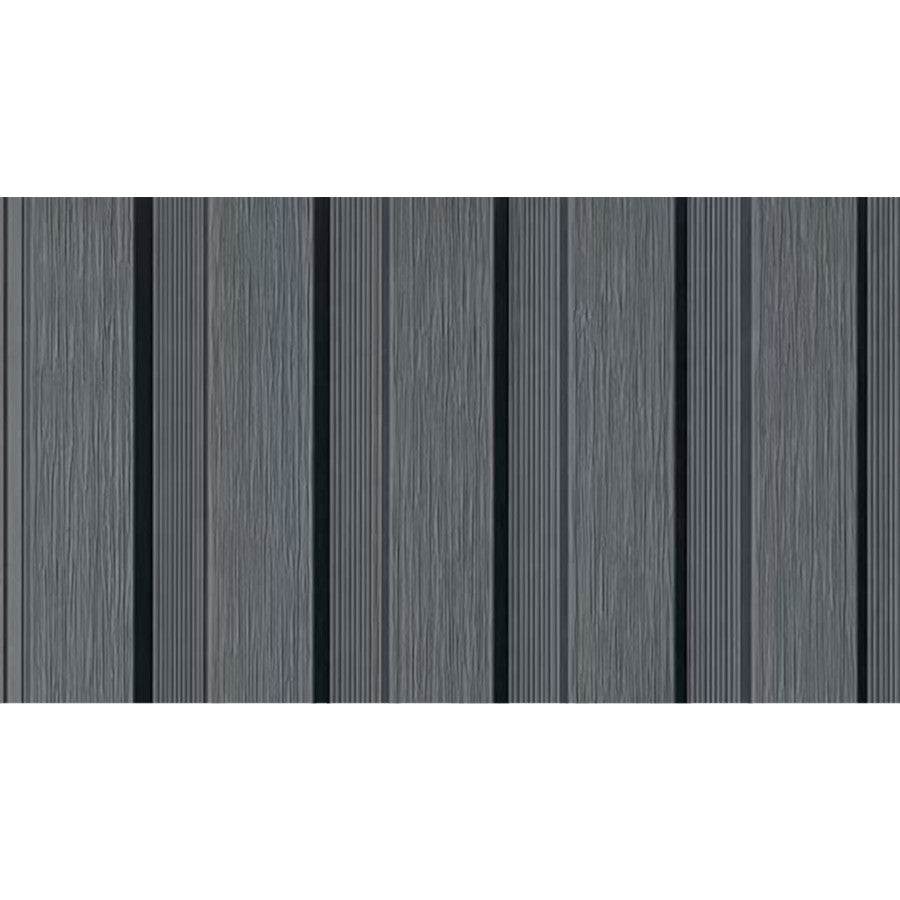

Silver Grey

What you'll need

A complete cladding system

Fix boards to a solid, flat, ventilated frame of battens or steel, then finish every edge with the right trim.

Item	What it does	Size	Price
Cladding boards	The wall surface	5400 x 219 x 26mm	$77.17
Start Trim	Where each cladding run starts and ends	2900 x 53 x 49.5mm	$42.35
L Trim	Frames the outside edge – picture-frame finish	2900 x 55 x 55mm	$30.25
Corner Trim	Internal 90° corners	2900 x 45 x 45mm	$42.35
Cladding Screws	Timber frame 7.6 x 35mm (316 SS) or metal frame 7.6 x 30mm (410 SS)	100 per pack	$77.00

Compare profiles

Series A, B or C – what's the difference?

Same size (5400 x 219 x 26mm) and the same 10-year residential warranty. The difference is the rib pattern that gives your wall its look.

Series	Profile	Look	Colours	Weight	Price / board
Series A	4-hole deep castellation	Clean, even ribs – modern & versatile	Burlywood, Carbon Black, Creamwood, Mocha Brown, Pure White, Shadow Maple	15.9kg	$77.17
Series B	5-hole deep castellation	Tighter, bolder architectural lines	Carbon Black, Red Wood, Silver Grey	16.1kg	$77.17
Series C	Irregular 5-hole	Varied ribs – more depth & shadow	Carbon Black, Mocha Brown, Pure White	15.9kg	$77.17

Priced per 5.4m board ($14.29 per lineal metre). Prices update automatically from our store.

Cladding FAQs

Questions, answered

How much cladding do I need?

Boards interlock, so each covers a little less than its 219mm overall width on the wall. Send us your wall or fence measurements (a phone photo is fine) and we'll give you an exact list of boards, trims and screws.

Can I clad over my existing fence?

Often, yes – as long as the posts are solid enough for the extra weight and wind load, and you can fix battens securely. Send us a photo if you're unsure.

Which screws do I need?

Timber battens or framing: 35mm self-tapping, 316 marine-grade stainless. Steel framing: 30mm self-drilling with a drill-point tip, 410 stainless.

Do I need a permit?

Fences over 2m generally need a building permit in Victoria. For walls near a boundary or in a bushfire-prone area, check with your building surveyor before cladding.

Does it need painting or oiling?

No. Wash with warm water and a soft brush and avoid harsh acidic or alkaline cleaners.

Does it resist termites?

WoodVance cladding is made to resist insects, rot and moisture. Your frame still needs to be termite-appropriate, such as treated pine or steel.

Want an exact list?

Send us your wall or fence measurements and we'll work out every board, trim and screw.
